Genaral Information

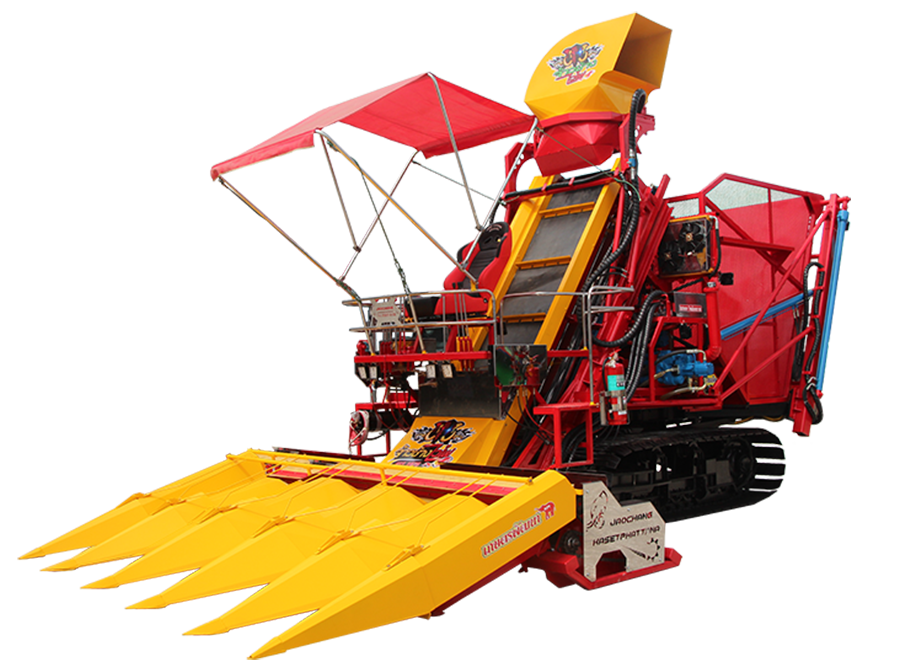

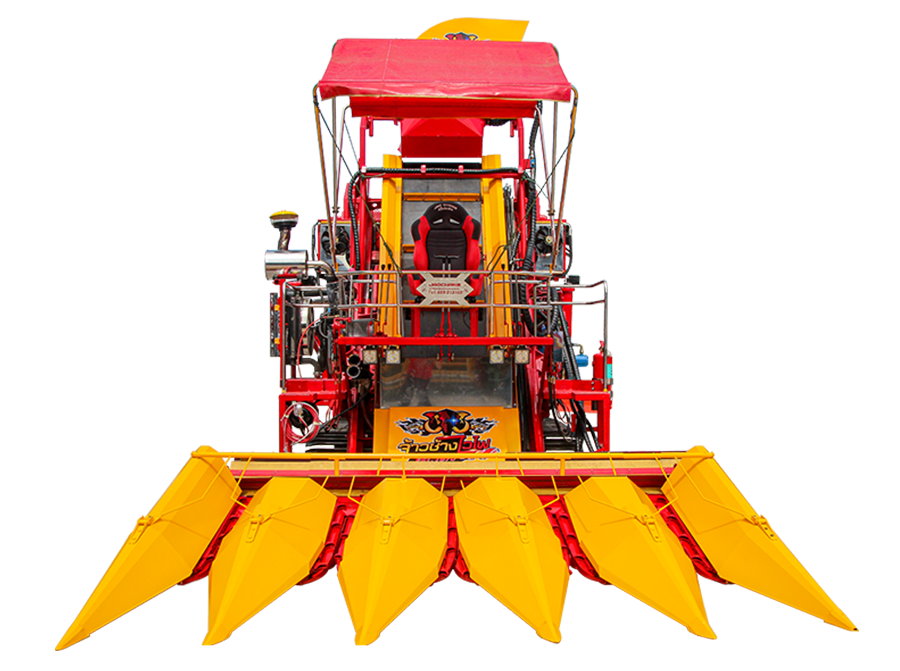

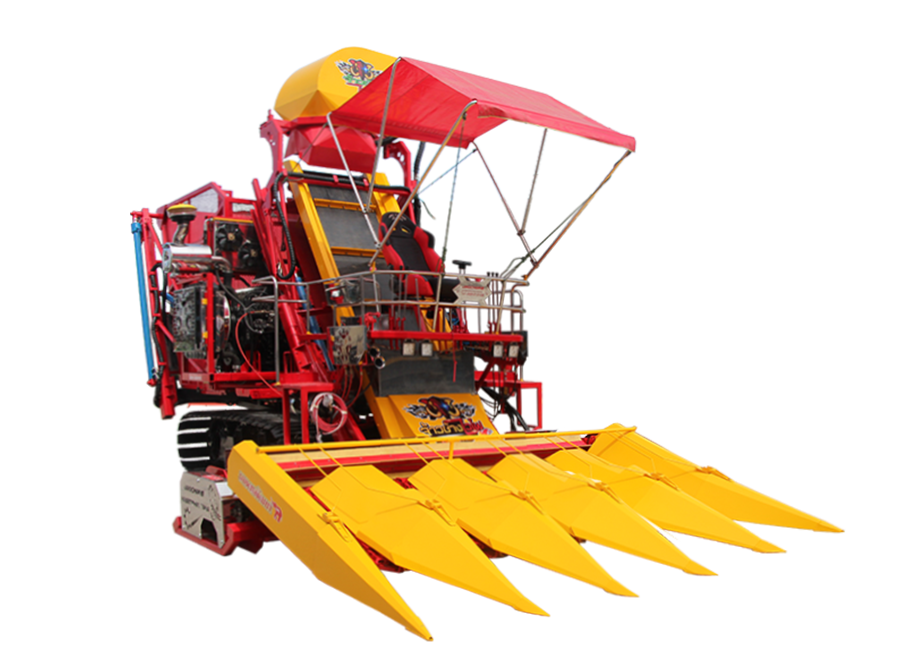

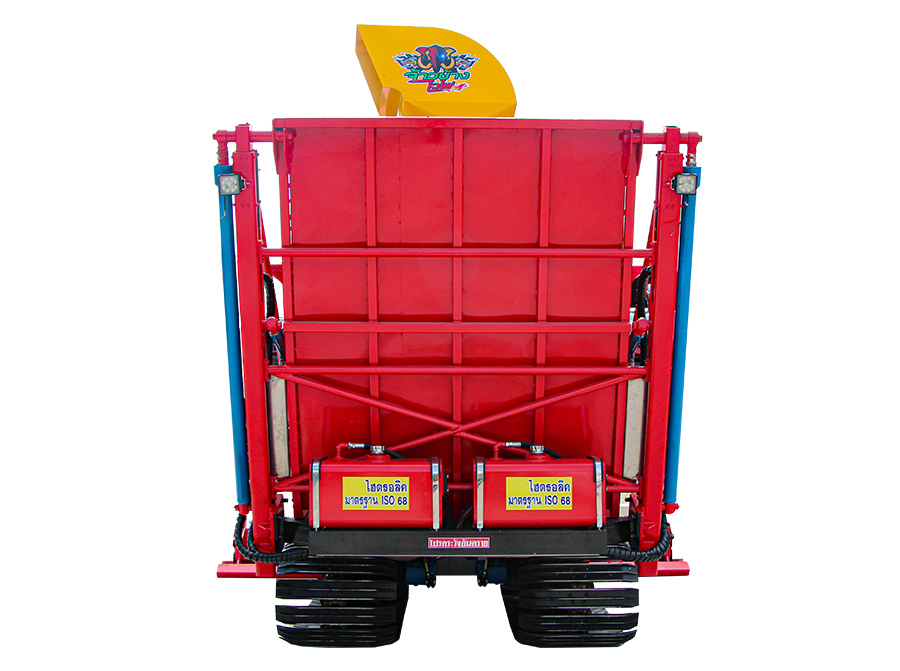

| KPH-05 MODEL
| ||||||
|---|---|---|---|---|---|---|---|
Dimensions ( WxLxH )
| mm
| 2,900 x 7,350 x 4,200
| |||||
Weight
| kg
| 8,500 | |||||
Engine
| CUMMINS (New) | New Holland | |||||
Fuel tank capacity
| litre
| 120 | |||||
Undercarriage width (tip-to-tip) | mm
| 2,250 | |||||
Picking system
| |||||||
Picker | 4 rows @700 mm or 5 rows @600 mm
| ||||||
Crop tank | kg
| 3,000 | |||||
Dumping height | mm
| 3,000 – 4,600 | |||||
Conveying system | Belt conveyor, hydraulic motor-driven
| ||||||
Cleaning system
| Suction fan, hydraulic motor-driven | ||||||
Crawler system | |||||||
Hydraulic pump
| Tandem variable displacement hydrostatic pump (75 c.c.)
| ||||||
Hydraulic motor
| Fixed displacement hydrostatic motor (75 c.c.)
| ||||||
Final drive gearbox
| KPI-10HT
| ||||||
Track sprocket
| teeth
| 25 | |||||
Lenght of track chain
| links/track
| 42 | |||||
No. of rollers
| per track
| 11 (2 uppers,9 lowers)
| |||||
Idler diameter
| mm (inch)
| 406 (16”) | |||||
Track gauge
| mm
| 1,500
| |||||
Track shoes (W x L x H)
| mm
| 120 x 750 x 25 (excavator type)
| |||||
Performance
| |||||||
Max. speed
| km/h
| 8 | |||||
Working speed
| km/h
| 3-5 | |||||
Field capacity
| ha/h (acre/h)
| 0.5-0.6 (1.2-1.6)* | |||||
Fuel consumption
| L/ha (L/acre)
| 19-25 (8-10)* | |||||
Losses
| Less than 3%* | ||||||
Operators
| persons | 3
| |||||
Warranty conditions | Rollers 160 ha | ||||||
Warranty conditions: under normal operation and recommended maintenance conditions | |||||||
